Sound System Installations Leeds

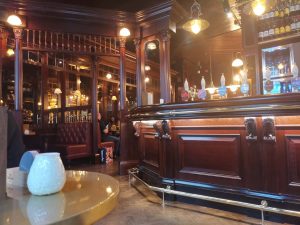

We recently completed a commercial sound system installation at Bankers Cat, a newly opened bar located in the heart of Leeds. The project focused on creating a rich, balanced audio experience throughout the venue while keeping the installation discreet and in keeping with the bar’s stylish interior.

Main Bar Area Sound System

To provide clear and consistent audio coverage across the main bar, we installed eight wall-mounted speakers from Apart Audio.

The system features Apart Audio Kubo 5 speakers in black, strategically positioned throughout the space. These speakers deliver excellent clarity and even sound dispersion while blending seamlessly with the venue’s interior design.

Enhanced Bass Performance

To complement the Kubo 5 speakers and enhance the lower frequency response, we installed three Apart Audio SUB165 active bass speakers.

These compact subwoofers are discreetly hidden beneath fixed seating areas, ensuring the bass frequencies are evenly distributed across the venue without affecting the visual aesthetics. This addition adds depth and warmth to the music, creating a more immersive atmosphere for guests.

Staff Audio Control

For simple day-to-day operation, we installed a Apart Audio Zone4R in the bar’s backwash area.

This control panel allows staff to easily:

• Adjust volume levels

• Manage different audio zones

• Set the atmosphere depending on the time of day or event

This provides full control of the venue’s sound environment with a simple and user-friendly interface.

Downstairs Snug Area

The sound system also extends into the bar’s downstairs snug area, where we installed four additional Apart Audio Kubo 5 speakers, carefully integrated into the existing ornate woodwork.

To maintain consistent sound quality with the upstairs area, we also installed another Apart Audio SUB165 active subwoofer, discreetly hidden beneath the fixed seating.

Separate Toilet Area Audio Zone

Within the downstairs toilet area, we installed a pair of 8-inch ceiling speakers from Apart Audio.

This area operates as a separate audio zone, complete with its own independent volume control, ensuring comfortable sound levels without affecting the rest of the venue.

A Bespoke Bar Sound System

This installation at Bankers Cat demonstrates how a carefully designed commercial audio system can enhance the atmosphere of a hospitality venue. By combining high-quality speakers, discreet subwoofers, and simple zone control, we created a sound system that delivers:

• Clear and balanced music throughout the venue

• Enhanced bass for a richer listening experience

• Flexible zone control for staff

• A discreet installation that complements the bar’s interior

The result is a vibrant and immersive sound environment, helping to create an enjoyable and memorable experience for every visitor.

As part of the sound system installation, all core audio equipment is neatly housed within a wall-mounted sound equipment cabinet, providing a secure and organized hub for managing the building’s audio system. This centralized setup allows for efficient control and reliable sound distribution throughout the office.

Amplification System

The main speaker zones are powered by three Apart Audio REVAMP 2120T stereo amplifiers from Apart Audio.

These amplifiers provide clean and reliable power to the primary speaker zones across the office, ensuring balanced stereo sound and consistent audio coverage in the main working areas.

Dedicated Restroom Audio System

To provide appropriate background audio in the restroom areas, we installed a TOA Corporation 100-volt line mixer amplifier.

This amplifier is dedicated exclusively to the toilet speakers, ensuring stable audio levels and reliable performance without affecting the main office audio zones.

Zone Control and Audio Sources

At the heart of the system is the Apart Audio ZONE4, which manages the distribution of audio throughout the building.

The Zone4 mixer is connected directly to the office computer, allowing staff to play background music playlists or other audio sources across the different zones. The mixer provides:

• Flexible input connections for multiple audio sources

• Independent control of up to four zones

• Simple management of music playback and volume levels

Centralised and Efficient Audio Management

By combining professional amplification, dedicated zone control, and centralized equipment housing, the system provides a reliable and easy-to-manage audio solution for the office environment.

This configuration ensures consistent background music and sound coverage throughout the workspace, helping create a comfortable and engaging atmosphere for staff and visitors alike.
